| DL 06-130/T Plus/T (The Sound Champions ) |
 |

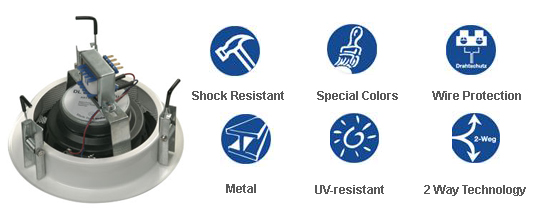

| The ceiling speakers DL 130 plus made of powder-coated metal in white (RAL 9010) offer an excellent sound because of the modern 2-way technology. |
| Features : |
 Spring clamps with cropped leg spring, increased clamp force and shortened tension distance. This allows quick and easy mounting. |
| Plain installation in false ceilings won't cause problems anymore. |
| You can order all ceiling speakers in different RAL-colours at a surcharge. |
| Neodymium Tweeter. |
| 2-way technology with balanced frequency range. |
|
| Technical Specifications: |
| Technical Specifications |
DL 06-130/T Plus |
| Power |
6 / 3 / 1.5W |
| Frequency Range |
100-20,000 Hz |
| SPL 1W / 1m |
97.0dB |
| SPL Pmax / 1m |
104.8dB |
| Dimensions |
180 X 100 mm |
| Ceiling Cut-out |
166mm |
| Temperature Range |
-200 C to 800 C |
| Dispersion Angle (-10dB) |
1800 (H) / 1800 (V) |
| Weight |
1.15 Kg. |
| Mounting |
Quick Fit Mounting |
| Colour |
RAL 9010 |
|
| |
